PROMISE Part #/MPN: TV274VC-A
DiscTech Item #: PRO-TV274VC-A-BN-3Y
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:3 Year ManufacturerProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Capacity: 16TB
Interface Types: SAS Serial Attached SCSI, SATA, SFF-8088
Form Factor: 3.5inx1.0in LFF Hard Drive
Electrical Interface: SAS-1 Serial Attached SCSI - 3.0Gbps
On-Board Cache: 2GB
Bays/Ports/Slots: 16
U Height: 3U
Wattage/VA: 500W
Voltage: 110-240V Multi

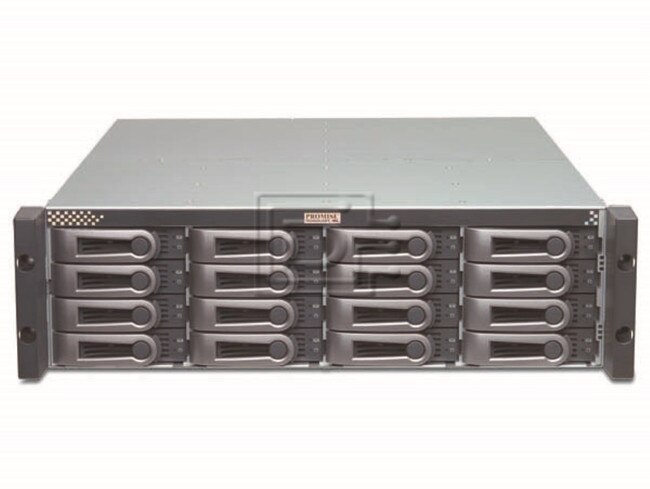

Promise Technology VTrak J610s Series TV274VC/A 3U 16TB SAS JBOD DAS Expansion Chassis Storage Array w/ HDDs - Brand New
Promise Technology VTrak J610s Series TV274VC/A 3U 16TB (16x1TB) Dual-Controller SAS JBOD DAS Expansion Chassis Storage Array with HDDs - Brand New
This expansion chassis includes 16x 1TB SATA hard drives.
Features
- JBOD storage enclosure with Dual I/O modules and four SAS-wide Ports
- 16 hot-swappable drive bays in a robust 3U chassis
- Supports Serial Attached SCSI (SAS) and SATA drives simultaneously
- Redundant, hot-swappable Field Replaceable Units (FRUs)
- SES-2 compliant enclosure management
- Compatible with leading SAS & SATA drives, HBAs and RAID controllers
Compatibility:
This expansion chassis supports Serial Attached SCSI (SAS) and SATA drives simultaneously.
Specifications | |
---|---|
I/O | Dual I/O supports failover/failback and active/ active drive access |
Drives Included | 16x 1TB SATA hard drives |
Drive Support | Up to sixteen 3.5” x 1” hard drives SAS 3Gb/s, SATA II 3Gb/s and 1.5Gb/s Supports any mix of SAS and SATA drives simultaneously in the same enclosure |

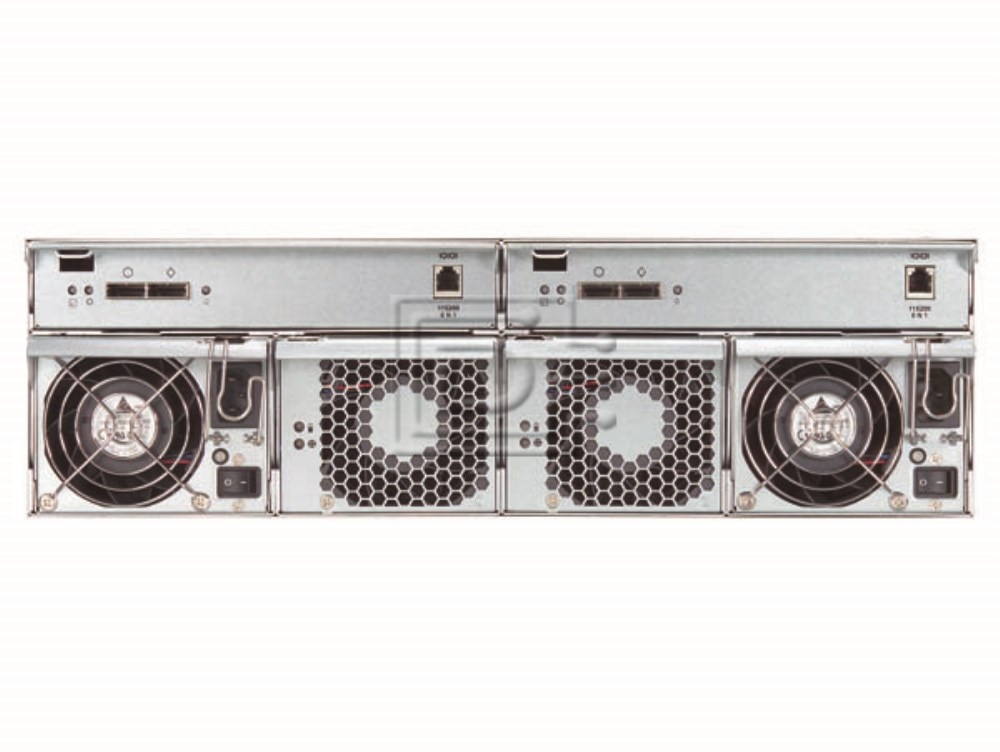

External I/O Ports (per controller) | Each I/O module has two SAS ports using industry standard Mini SAS 4x wide-port-SAS connectors (SFF-8088), one IN and one OUT for cascading JBODs |
Management Function– With Expander Embedded | SMP – SAS Management Protocol In-band access to Expander and PHY information Statistic counters and performance monitors SES EM – SES Enclosure Management (ANSI T10 SES 2 Compliant) SCSI SES command set over virtual SSP device |
Supported Operating Systems | Windows 2003, Linux (Red Hat, SuSE) |
Management Tools/Interface | LED status indicator support for drives, FRU and enclosure environmentals In-band SES enclosure management alerts user to out of spec operation: thermal condition, voltage condition or component failures, protecting data and hardware Full subsystem management CLI through out-of-band RS232 serial port |
Enclosure Management Protocols | SES over in-band SAS |
Voltage | 100-240 Vac Auto-Ranging |
Current (Maximum) | 8 A @ 100 Vac; 4 A @ 240 Vac (current rating with two power cords) |
Power Supply | Dual 500W, 100-240 Vac auto-ranging, 50-60 Hz, dual hot swap and redundant with PFC, N+1 design |
Power Consumption | 108.38 Watts (under load w/o HDD), 523.91 Watts (under load with SAS HDD) |
Operating Temperature/ Humidity | 5°~40°C (-40°~60°C non operational) / Maximum 95% |
Vibration | Random, 0.21 grms, 5-500Hz, X, Y, Z axis |
Dimensions | 13.1x 44.65x 56.1 cm (5.2 x 17.6 x 22.1in) |
Weight | Net weight: 30.5 kg (67.2 lbs) without drives, 38.5 kg (84.9 lbs) with 16 drives Gross weight: 37.5kg (82.7 lbs) without drives |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: TV274VC/A
Weight: 102 lb
Warranty: 3 Year Manufacturer
Brand New
The product is brand new.
3 Year Manufacturer Warranty
The product has a manufacturer warranty for the time period specified.
