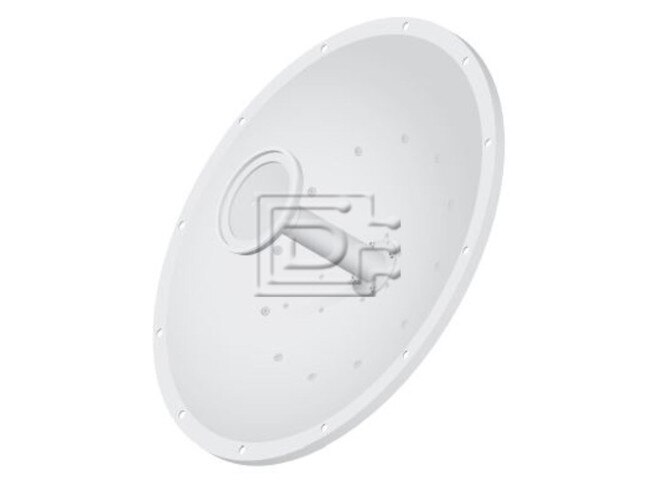

Ubiquiti Networks RD-5G30 RocketDish PtP Dish Antenna

Ubiquiti Networks Part #/MPN: RD-5G30

DiscTech Item #: UBI-RD-5G30-BN-1Y

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Ubiquiti Networks RD-5G30 RocketDish 5GHz PtP Bridge Dish Antenna - Brand New

Ubiquiti Networks RD-5G30 RocketDish 5GHz Point-to-Point Bridge Dish Antenna - Brand New

Pair a RocketDish™ antenna with a Rocket™ basestation to create the endpoint of a high-performance, Point-to-Point (PtP) bridge or network backhaul (Rocket sold separately).

Powerful Performance
The RocketDish antenna delivers 2x2, dual-polarity performance. On the right is one example of how the RocketDish with Rocket can be deployed in a backhaul link to deliver bandwidth from an ISP network out to a neighborhood tower. From there, an airMAX® Sector with Rocket delivers bandwidth to the ISP’s customers.

Carrier-Class Construction
Incorporating a dish reflector design for excellent beam directivity, the RocketDish antennas feature robust mechanical design using industrial-strength hardware for outdoor application use.

Plug and Play Integration
RocketDish antennas and Rocket basestations have been designed to seamlessly work together. Every RocketDish has a built-in Rocket mount, so installation requires no special tools.

Snap the Rocket securely into place and mount the antenna; you then have the optimal combination of RocketDish and Rocket for your PtP application.

Innovative Mechanical Design

  • Secure pole-mounting The hardware is designed to securely mount and maintain the position of the dish during harsh outdoor conditions.
  • Convenient installation The bubble level allows for easy alignment.

Weatherproof Design

  • Protective shroud The shroud* protects the cables and connectors from nature’s elements.

5 GHz Model
The 5 GHz frequency band is free to use, worldwide, offers plentiful spectrum, and works well for long-distance links. However, 5 GHz signals have more difficulty passing through obstacles than lower-frequency signals.

Model NumberRD-5G30
Frequency5 GHz
Gain30 dBi
Dimensions650 x 650 x 304 mm
(25.6 x 25.6 x 11.97 inch)
Weight9.8 kg
(21.61 lb)
Frequency Range5.1 - 5.8 GHz
Gain30 dBi
HPOL Beamwidth5" (3 dBi)
VPOL Beamwidth5" (6 dBi)
F/B Ratio34 dB
Max. VSWR1.4:1
Wind Loading787 N @ 200 km/h
(177 Ibf @ 125 mph)
Wind Survivability200 km/h
(125 mph)
Cross-pol Isolation35 dB Min
ETSI SpecificationEN 302 326 DN2
MountingUniversal Pole Mount
Rocket Bracket
Weatherproof RF Connectors

Click here to view the manufacturer's item description/brochure

Weight: 22 lb

Warranty: 1 Year Manufacturer

Brand New

Condition Levels Explained

The product is brand new.

1 Year Manufacturer Warranty

Product Warranties Explained

The product has a manufacturer warranty for the time period specified.
